Pure Copper Pipe In Strip Earthing Electrode

About Pure Copper Pipe In Strip Earthing Electrode

Technical Specification :

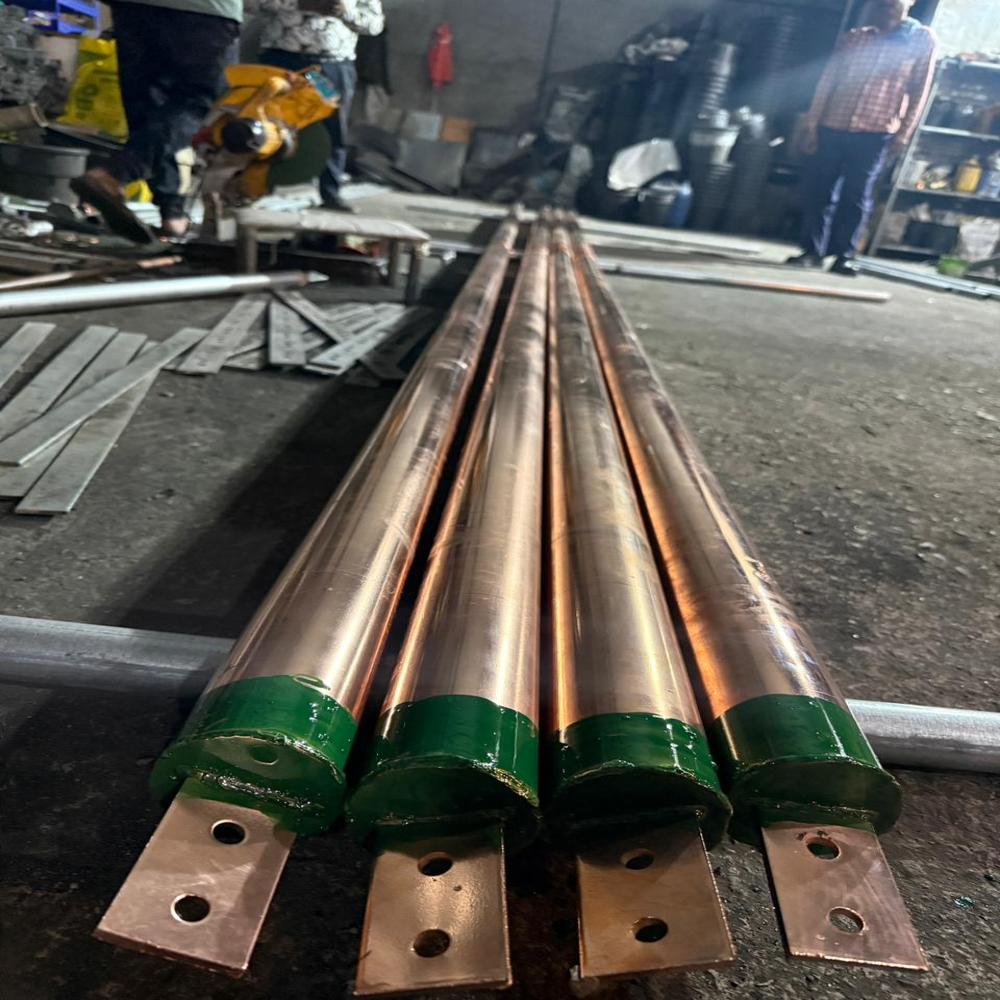

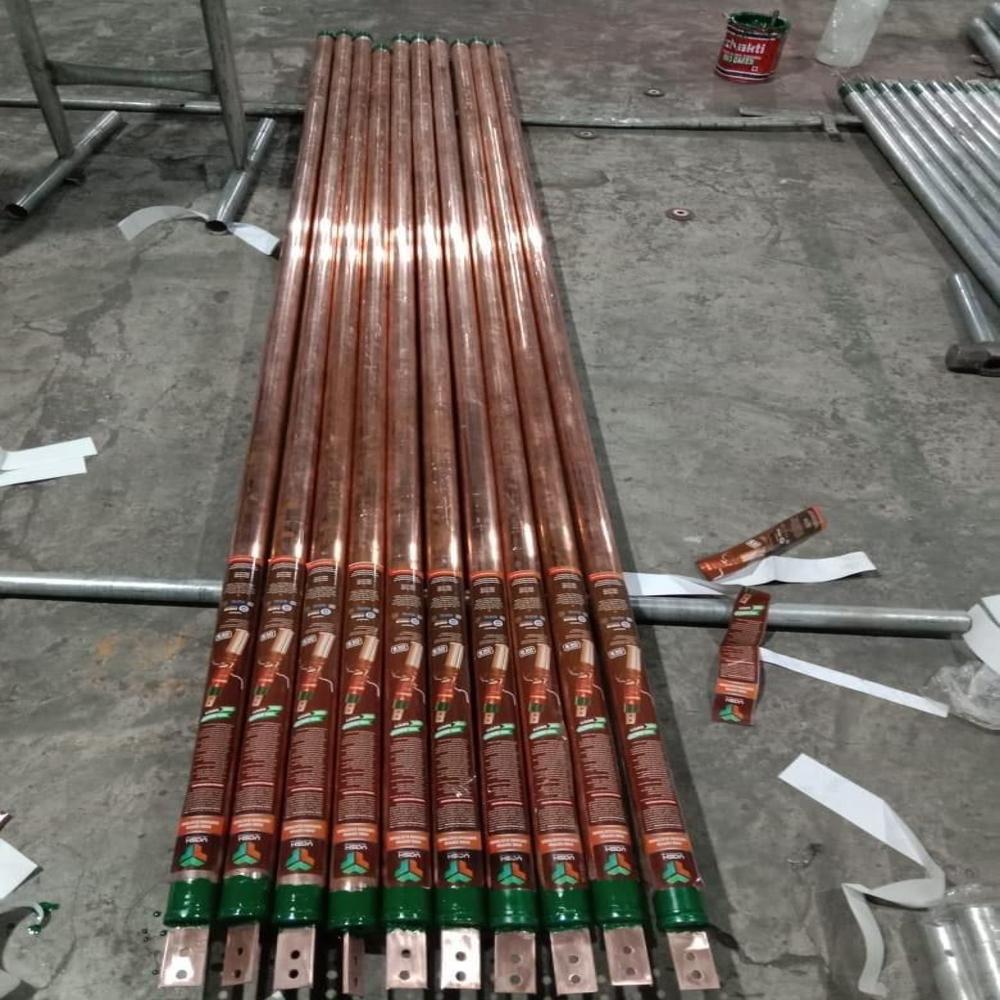

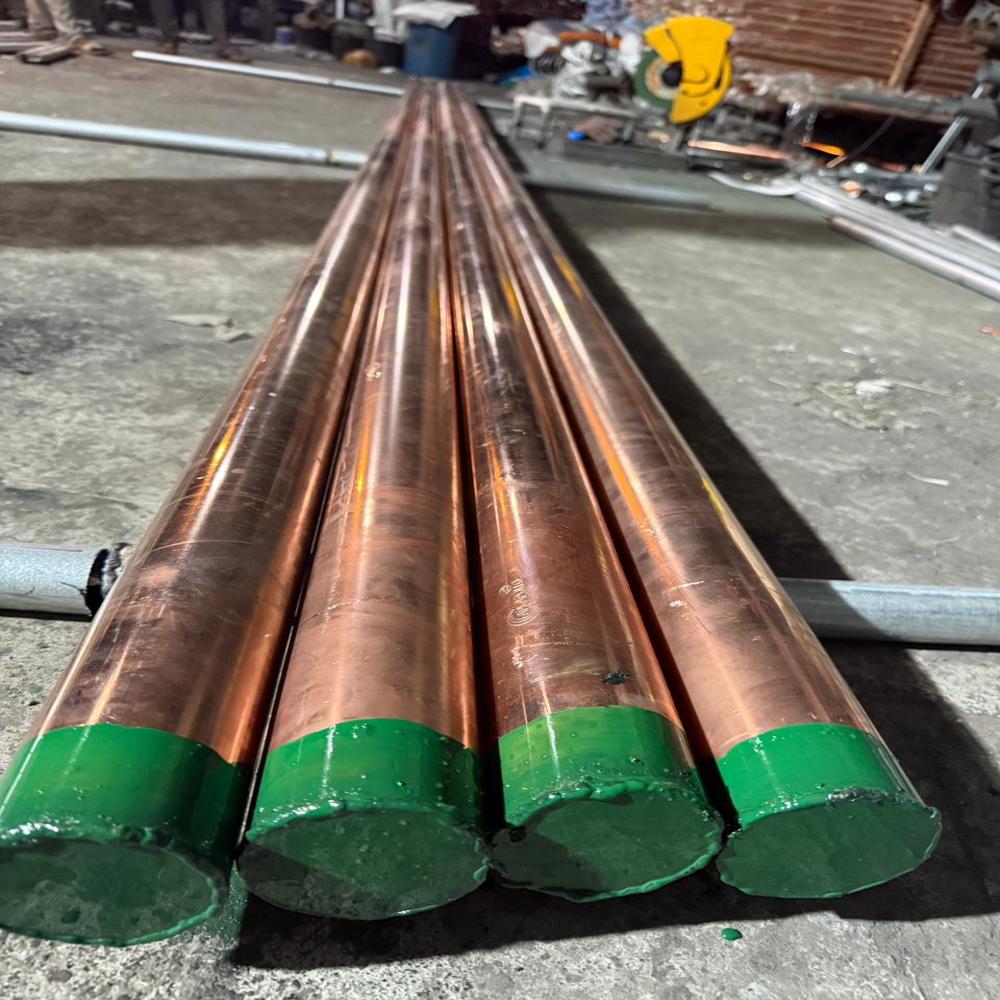

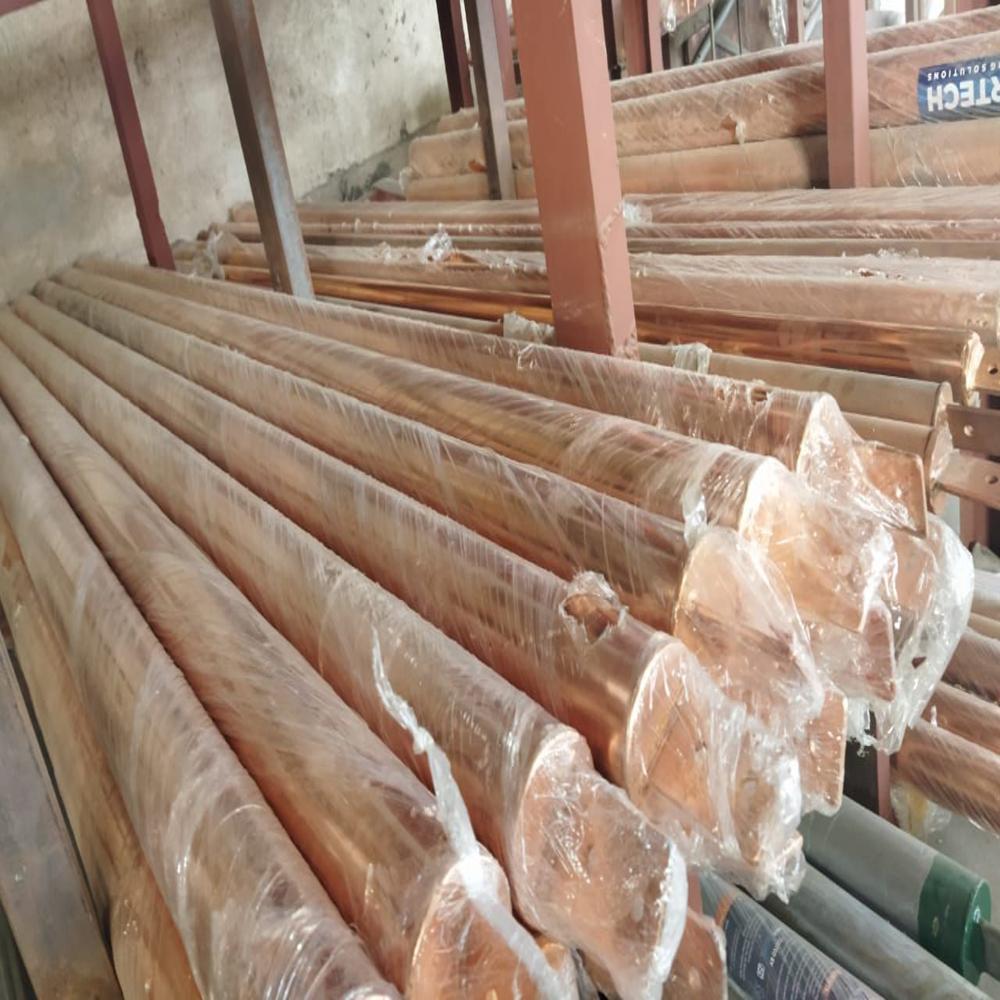

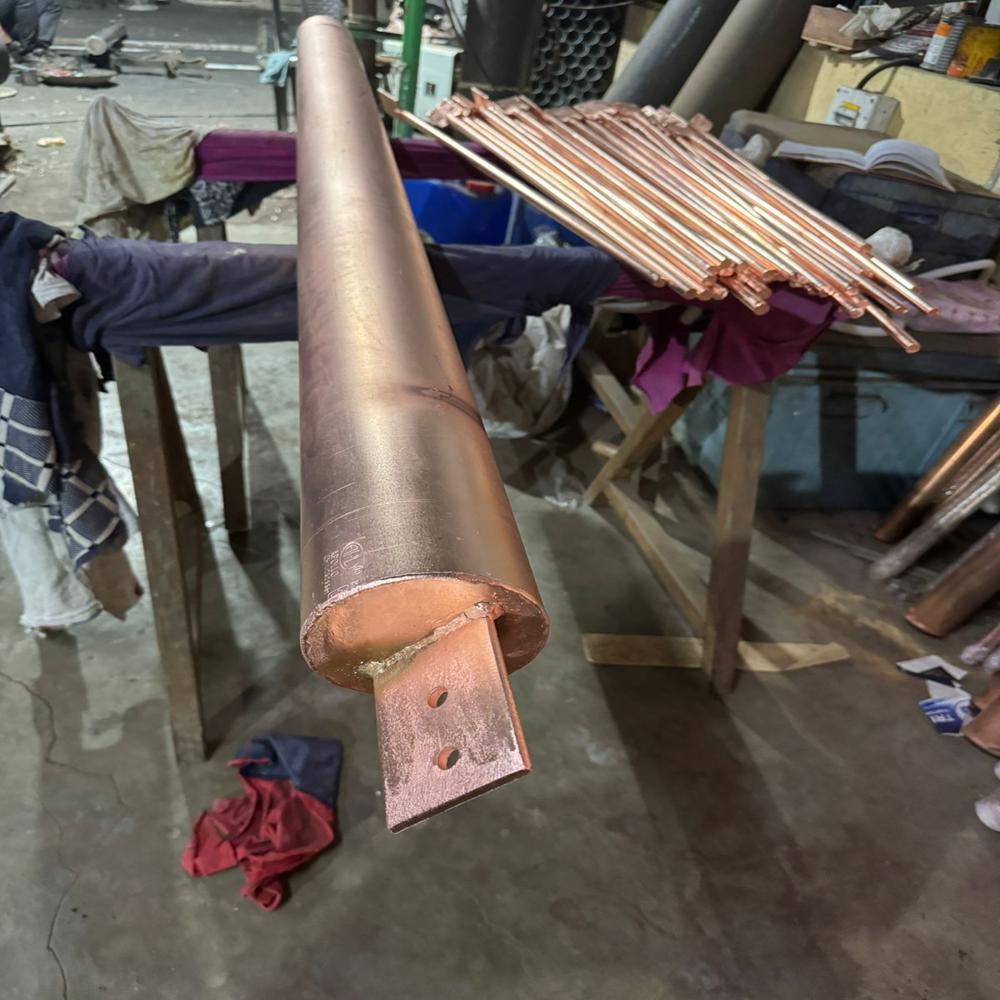

A Pure Copper Pipe in Strip Earthing Electrode is a high-performance grounding solution designed for efficient fault current dissipation and long operational life. It consists of a high-conductivity copper pipe with an internal copper strip electrode, ensuring superior electrical conductivity and minimal resistance.

The electrode is filled with a crystalline conductive compound that enhances soil conductivity and maintains moisture levels, enabling maintenance-free operation even in dry conditions. This strip-in-pipe design improves contact surface area and ensures fast dissipation of leakage and lightning currents.

Widely used in industrial plants, substations, telecom towers, solar systems, and commercial buildings, this electrode provides reliable earthing performance and equipment safety.

Alternative Product Options

1. Copper Bonded Strip-in-Pipe Electrode

Description:
This electrode features a copper-bonded steel pipe with an internal copper strip, offering a balance between performance and cost. The bonding thickness ensures long life and corrosion resistance, making it suitable for commercial and medium-duty applications.

2. Copper Bonded Electrode with Backfill Compound

Description:
Designed with a chemical backfill (bentonite or conductive compound), this electrode maintains stable resistance levels over time. It is ideal for areas with poor soil conductivity and requires minimal maintenance.

3. Heavy Duty Strip-in-Pipe Copper Electrode

Strip In Pipe Copper Bonded Earth Electrode  1,250

Heavy-duty strip-in-pipe earthing solution for high fault current dissipation in industrial setups.

Description:
A robust solution engineered for high fault current handling, featuring a larger diameter pipe and thicker internal strip. Suitable for power plants, heavy industries, and critical installations.

Product Comparison Table

Key Features (You can reuse for catalog)

• 99.9% pure copper pipe and strip construction
• Low earth resistance and high fault current dissipation
• Strip-in-pipe technology for increased surface contact
• Anti-corrosive, long service life
• Maintenance-free chemical earthing system
• Suitable for all soil conditions

Typical Specifications

• Pipe Diameter: 40mm / 50mm / 80mm
• Length: 1m / 2m / 3m
• Internal Strip Size: 253 mm to 506 mm
• Material: Pure Copper / Copper Bonded
• Filling: Conductive chemical compound

Applications

• Electrical substations
• Solar power plants
• Telecom towers
• Industrial machinery grounding
• Commercial & residential earthing systems

Final Tip

If you need premium performance and long life, go for pure copper electrodes. If budget is a concern, copper-bonded strip-in-pipe electrodes are a practical alternative with good performance.
