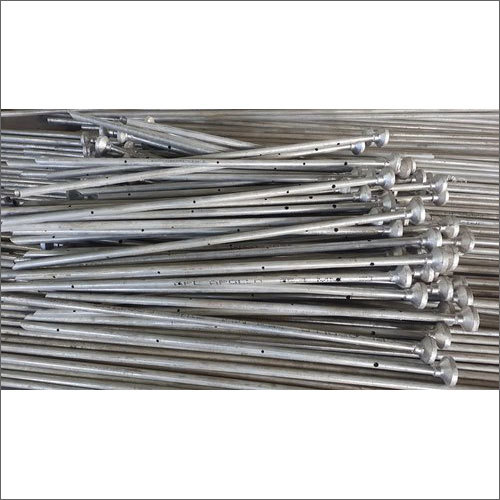

Funnel Earthing Pipe

Funnel Earthing Pipe Specification

Efficiency
Up to 98%

Feature
Prevents Electric Shock, Enhanced Safety

Overheating Protection
YES

Shape
Cylindrical

Connector Type
Bolt/Clamp

Surface Finish
Galvanized

Mounting Type
Ground Mounted

IP Rating
IP65

Operating Temperature
10 C Planck temperature ()

Humidity %
upto 95% RH

Product Type
Funnel Earthing Pipe

Application
Earthing

Protection Level
Other

Frequency (MHz)
50 Hz Megahertz (MHZ)

Rated Voltage
220-415 V Volt (V)

Output Type
Grounding

Color
Sliver

Dimension (L*W*H)
1250 mm x 50 mm x 50 mm Meter (m)

Weight
15 Kilograms (kg)

Warranty
25

Phase
Single Phase Compatible

Input Voltage
AC 220-415 V Volt (V)

Size
50 mm Diameter

Connection Type
Clamp Connection

Material
Galvanized Iron (GI)

No Of Poles
Single

Moisture Absorption
Low

Maintenance
Minimal

Internal Funnel
Galvanized steel funnel for better soil contact

Top Cap
Heavy-duty cast iron cap for protection

Service Life
Minimum 10 years

Pipe Length
1250 mm

Pipe Diameter
50 mm

Funnel Earthing Pipe Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash on Delivery (COD), Cash Against Delivery (CAD), Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
1000 Pieces Per Week

Delivery Time
1 Days

Sample Available
No

Packaging Details
as per requirement

Main Domestic Market
All India

About Funnel Earthing Pipe

A Funnel Earthing Pipe is placed at the top of the pipe, & the whole arrangement is covered with a cast iron cover. Pipe earthing is the best and efficient way of earthing and is also easily affordable. In this earthing GI pipe having a diameter of 38 mm and length of 2 meters is used. They are the conductors used for connecting the earth lead to various electrical appliances and devices such as distribution boards. The types of earthing are used to connect the metallic parts of an Electric appliance or installations to the earth. The Funnel Earthing Pipe is very easy to use.

Product details

Diameter	17.2
Usage/Application	Maintenance Free Tripod Earthing System- Zm or 3m length This solution is suitable for soil rsistiu-
Model Name/Number	YG-CB173
Product Type	COPPER BONDED ROD
Capacity	25 KA
Packaging Type	bubble wrap
Finishing Type	COPPER
Coating Thickness	110 MICRON
Color	COPPER

Enhanced Durability and Safety

Constructed with high-quality galvanized steel and a heavy-duty cast iron cap, the Funnel Earthing Pipe delivers reliable performance in demanding environments. Its robust build guarantees protection against corrosion and mechanical damage, contributing to extended service life and consistent safety standards.

Optimized For Efficient Earthing

The internal galvanized funnel maximizes soil contact, resulting in improved electrical conductivity and reduced resistance. Complying with IS 3043 standards further ensures dependable earthing, making it an ideal choice for safeguarding electrical installations in residential, commercial, and industrial sectors.

FAQs of Funnel Earthing Pipe:

Q: How does the galvanized steel funnel improve soil contact and earthing efficiency?

A: The internal galvanized steel funnel is designed to enlarge the area of soil contact, thereby enhancing electrical conductivity and ensuring lower resistance for effective earthing. This guarantees safe dissipation of fault currents.

Q: What are the main benefits of using this Funnel Earthing Pipe in electrical installations?

A: The main benefits include reliable earthing, reduced maintenance due to low moisture absorption, long service life of at least 10 years, and compliance with IS 3043 standards. The heavy-duty cap also protects against environmental and mechanical damage.

Q: When should this earthing pipe be installed in a project?

A: This earthing pipe is best installed during the initial phase of construction for any structure requiring electrical grounding, whether residential, commercial, or industrial, to ensure effective performance and long-term safety.

Q: Where is the Funnel Earthing Pipe typically used or recommended?

A: It is recommended for use in locations across India where robust, compliant earthing is required, including substations, commercial buildings, industrial complexes, and residential projects.

Q: What is the process for installing the Funnel Earthing Pipe?

A: Installation involves positioning the pipe vertically into the ground, ensuring secure soil contact through the galvanized funnel, and then capping it with the heavy-duty cast iron top cap for protection. Adherence to IS 3043 guidelines is necessary for optimal results.

Q: How does the low moisture absorption feature impact its maintenance?

A: Low moisture absorption minimizes rust and degradation, drastically reducing the need for frequent inspections or maintenance and ensuring consistent performance throughout its service life.
