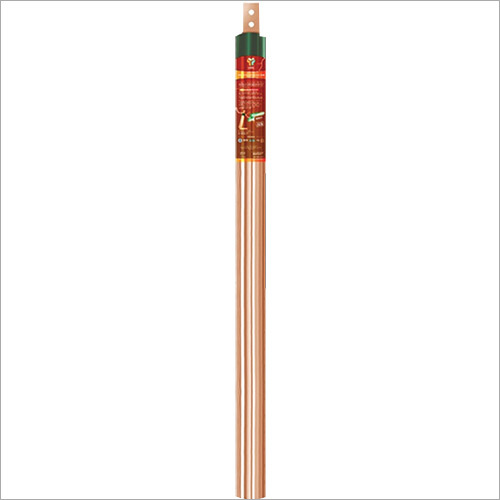

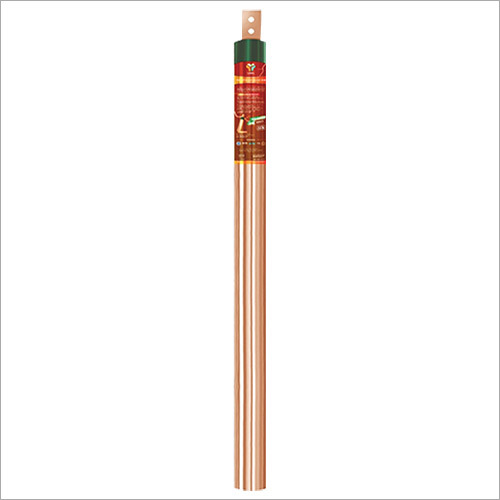

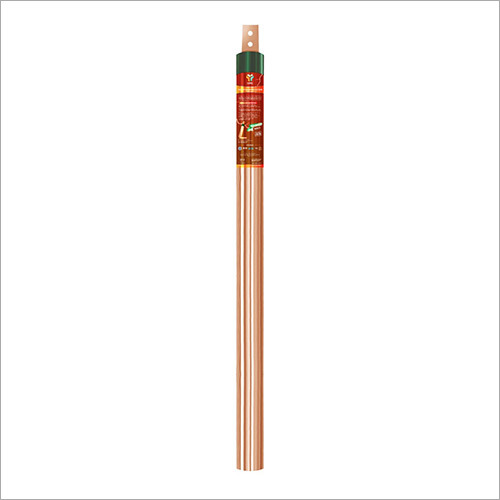

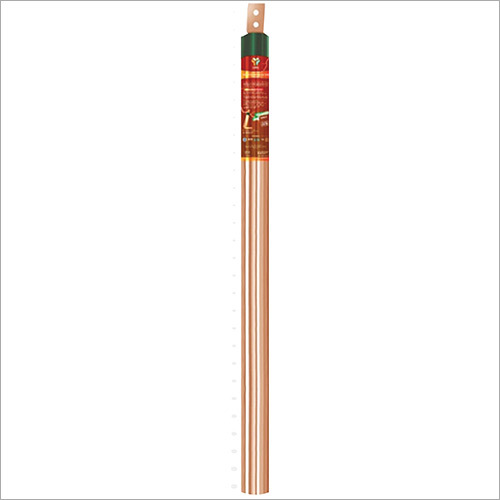

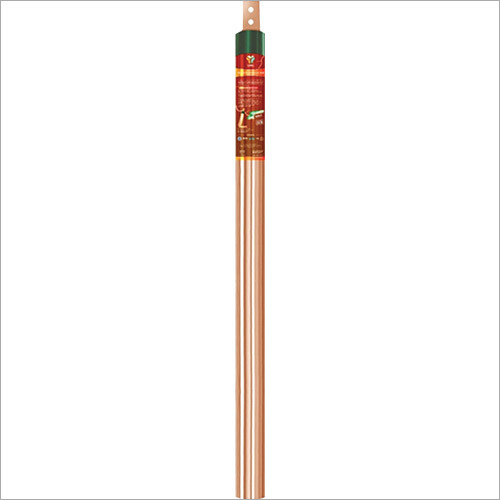

Copper Bonded Earthing Electrode

Copper Bonded Earthing Electrode Specification

Surface Treatment
Polished

Product Type
Copper Bonded Earthing Electrode

Shape
Flat

Length
3 Meter (m)

Color
Copper

Copper Bonded Earthing Electrode Trade Information

Minimum Order Quantity
100 Pieces

Supply Ability
1000 Pieces Per Week

Delivery Time
Week

About Copper Bonded Earthing Electrode

The supplied Copper Bonded Earthing Electrode is considered to be the most apt equipment for earthing purpose owing to excellent resistance to oxidization. The main copper coated earthly electrode is saved by the copper bonding from corrosion and the crystalline mixture which is filled within the electrode. Electrode is a highly advanced product that is based on worldwide technology and offers improved oxidation resistance as well as a longer product life than standard GI Electrodes. The supplied Copper Bonded Earthing Electrode is considered to be the most apt equipment for earthing purpose owing to excellent resistance to oxidization.

Features :

Perfectly bonded rod will lost longer, drive easier and will not crack.
Corrosion resistance while providing tee lowest resistance to ground
Threads are rolled by roll threading process
Copper covers is maintained, when at the root of the thread.
Roll thread gives greater strength than cut thread

Product details

Terminal Size	40x6mm
Usage/Application	Earthing
Length Of Rod	3m
Model Name/Number	YG-CB503
Finish	Polished
Brand	Yash
Material	Copper
Rod Diameter	50mm
Country of Origin	Made in India

Technical Specification :

SR No.	Outer Pipe Dia (mm)	Length (Mtr)	Terminal Size (mm)	Material	Type of Electrode
YG-CB501	50	1	40 X 6	COPPER BONDED	SINGLE PIPE
YG-CB502	50	2	40 X 6	COPPER BONDED	SINGLE PIPE
YG-CB503	50	3	40 X 6	COPPER BONDED	SINGLE PIPE
YG-CB801	80	1	50 X 6	COPPER BONDED	SINGLE PIPE
YG-CB801	80	2	50 X 6	COPPER BONDED	SINGLE PIPE
YG-CB801	80	3	50 X 6	COPPER BONDED	SINGLE PIPE
